DJI Ronin SC/S FW Update Adds Support for PS4 & XBox Controllers

Google+ Pinterest LinkedIn Tumblr +

DJI has released firmware updates for their popular Ronin-SC and Ronin-S handheld gimbals adding support for gimbal control using PS4 and/or Xbox controllers.

Firmware updates add new features, tweak existing ones and fix known issues from previous versions. As always, it’s recommended that you update to the latest version to ensure that you have the latest features and abilities.


What’s New/Fixed

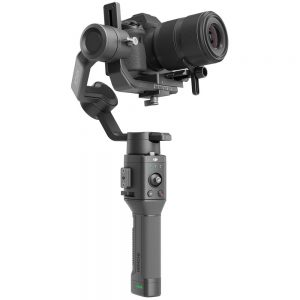

DJI Ronin-SC

Ronin-SC

Ronin-SC Firmware update v1.3.0.20 (2019.11.19)

  • Added ability to create a Motionlapse through photo capture during ActiveTrack in the Ronin app. During Motionlapse capture of a faraway subject such as a building, keep the subject in the same position of the frame during the shot (requires Ronin app v1.2.6 or higher).
  • Added parameter saving feature for the Focus Motor. Calibrating the Focus Motor is not required every time it is powered on, unless you have moved the position of the Focus Motor. Make sure to update the latest firmware for both the Focus Motor and Focus Wheel.
  • Added photo capture, video recording, autofocus, and focus pull support for Nikon Z50 cameras with supported Nikkor lenses using the Multi-Camera Control Cable (Type-C) with the Multi-Camera Control Adapter (Type-C to Micro USB). To use autofocus on the Nikon Z50, press halfway down on the gimbal’s camera control button.
  • Added photo capture, video recording, and autofocus for Panasonic G95 cameras using a RSS control cable for Panasonic (RSS-P). To use autofocus on the Panasonic G95, press halfway down on the gimbal’s camera control button.
  • Added support for using PS4 DualShock and Xbox controllers to control the gimbal and camera. Photo capture, video recording, focus, zoom, profile switch, and gimbal movements can be controlled after connecting the controller to the mobile device and gimbal. Enter the Ronin app and select Create, and then open and stay on the Gaming Controller screen when using the PS4 DualShock controller or Xbox controller to control the gimbal. The speed and smoothness of the control sticks can be adjusted. Set the focus value within 10 for optimal performance. iOS 13 or higher, Android 9.0 or higher, and Ronin app v1.2.6 or higher are required.
    • In order to control the gimbal, connect the PS4 DualShock controller or Xbox controller to the mobile device via Bluetooth. Follow the steps below for Bluetooth connection:
    • When using a PS4 DualShock controller,
      • Press and hold the power button and the Share button simultaneously. Release them when the indicator on the controller flashes quickly.
      • Enable Bluetooth on the mobile device and select DualShock controller.
    • When using a Xbox controller,
      • Power on the controller, and press and hold the connect button for three seconds.
      • Enable the Bluetooth in the mobile device and select Xbox controller.
    • Notes:
      • If the gaming controller is connected to a mobile device, press the power button and the controller will automatically connect to the mobile device if the Bluetooth is disconnected. If the gaming controller and the mobile device cannot reconnect, unpair the device on the mobile device and try again.
      • If the PS4 DualShock controller is connected to a mobile device and needs to be connected to a PS4 console, use the USB Cable to reconnect the PS4 controller and the PS4. If the Xbox controller is connected to a mobile device and needs to be reconnected to an Xbox console, use the USB cable or press and hold the power button and the connect button simultaneously to connect the Xbox controller and the Xbox console.
  • Fixed issue: zoom settings on Sony cameras could not be saved after rebooting the gimbal.
  • Fixed issue: focus control failed for Canon EOS series cameras

Taken from Ronin-SC Release Notes


What’s New/Fixed

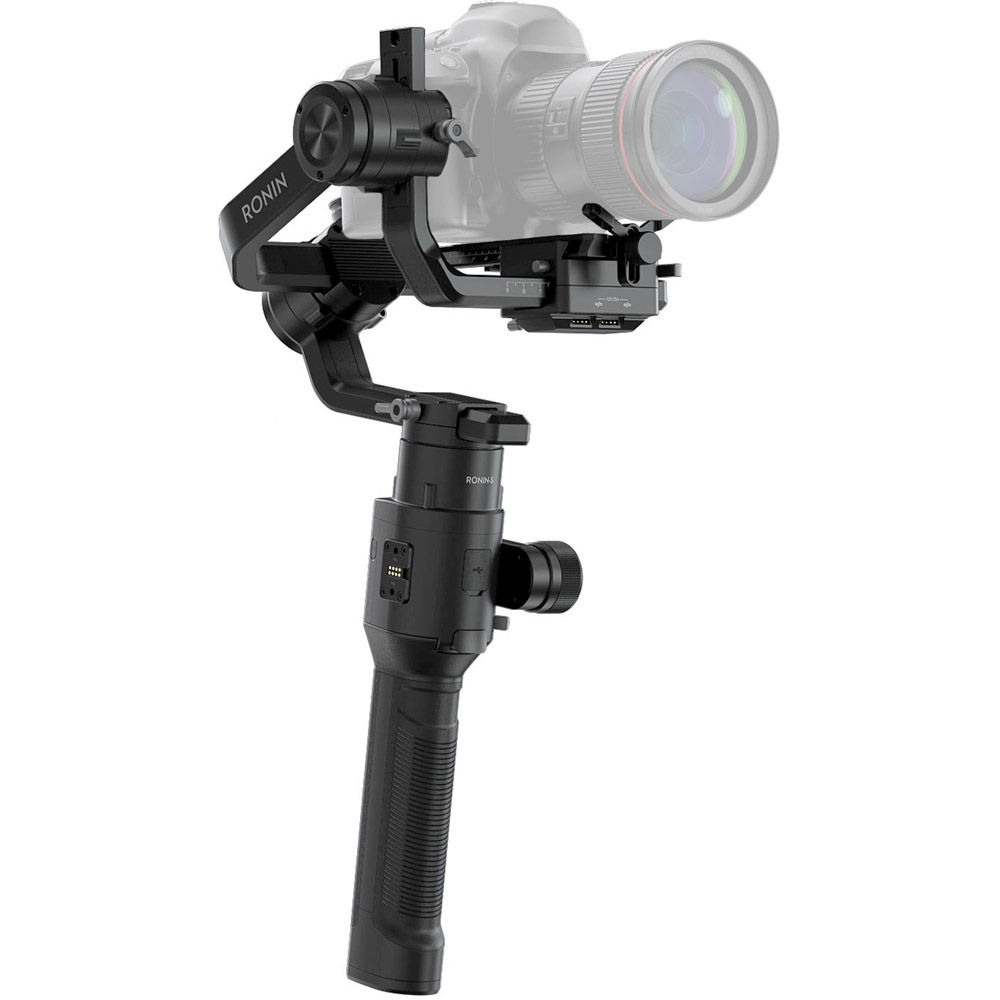

DJI Ronin-S

Ronin-S

Ronin-S Firmware update v2.1.1.0 (2019.11.19)

  • Added ability to create a Motionlapse through photo capture in ActiveTrack in the Ronin app. It is recommended to create the Motionlapse of a building, and keep the subject in the same position of the frame during shooting (requires Ronin app v1.2.6 or higher).
  • Added a quick switching function to Portrait mode. Press M button twice to enter/exit Portrait mode. Portrait mode requires using Ronin-S in Flashlight mode and the joystick control is not available. Portrait mode can be disabled on the Ronin app Status page (requires Ronin app v1.2.6 or later). Note that the tilt axis will rotate 90° when switched to Portrait mode. Make sure the camera will not collide with the gimbal.
  • Added Advanced Calibration feature. If the roll axis drifts after recentering the gimbal, enter the DJI Ronin app then System Status and select Advanced Calibration to fix the issue (requires DJI Ronin app v1.2.6 or later).
  • Added support for using PS4 DualShock and Xbox controllers to control the gimbal and camera. Photo capture, video recording, focus, zoom, profile switch, and gimbal movements can be controlled after connecting the controller to the mobile device and gimbal. Enter the Ronin app and select Create, and then open and stay on the Gaming Controller screen when using the PS4 DualShock controller or Xbox controller to control the gimbal. The speed and smoothness of the control sticks can be adjusted. Set the focus value within 10 for optimal performance. iOS 13 or higher, Android 9.0 or higher, and Ronin app v1.2.6 or higher are required.
    • In order to control the gimbal, connect the PS4 DualShock controller or Xbox controller to the mobile device via Bluetooth. Follow the steps below for Bluetooth connection:
      • When using a PS4 DualShock controller,
        • Press and hold the power button and the Share button simultaneously. Release them when the indicator on the controller flashes quickly.
        • Enable Bluetooth on the mobile device and select DualShock controller.
      • When using a Xbox controller,
        • Power on the controller, and press and hold the connect button for three seconds.
        • Enable the Bluetooth in the mobile device and select Xbox controller.
      • Notes:
        • If the gaming controller is connected to a mobile device, press the power button and the controller will automatically connect to the mobile device if the Bluetooth is disconnected. If the gaming controller and the mobile device cannot reconnect, unpair the device on the mobile device and try again.
        • If the PS4 DualShock controller is connected to a mobile device and needs to be connected to a PS4 console, use the USB Cable to reconnect the PS4 controller and the PS4. If the Xbox controller is connected to a mobile device and needs to be reconnected to an Xbox console, use the USB cable or press and hold the power button and the connect button simultaneously to connect the Xbox controller and the Xbox console.
    • Added photo capture, video recording, and autofocus for Panasonic G95 cameras using a RSS control cable for Panasonic (RSS-P). To use autofocus on the Panasonic G95, press halfway down on the camera control button of the gimbal.
    • Added photo capture, video recording, autofocus, and focus pull support for Panasonic S1H cameras with supported L-mount lens using a Multi-Camera Control Cable (MCC-C). To use autofocus on the Panasonic S1H, press halfway down on the camera control button of the gimbal.
    • Added photo capture, video recording, autofocus, and focus pull support for Nikon Z50 cameras with supported Nikkor lens using a Multi-Camera Control Cable (MCC-B). To use autofocus on the Nikon Z50, press halfway down on the camera control button of the gimbal.
    • Added disable 3D Roll 360 feature in the Ronin app (requires Ronin app v1.2.6 or later).
    • Fixed issue: zoom settings on Sony cameras could not be saved after the gimbal rebooted.
    • Fixed issue: focus control failed for the Canon EOS series cameras.
    • Optimized Auto Tune in the Ronin app.
    • Optimized SmoothTrack settings in the Ronin app.
